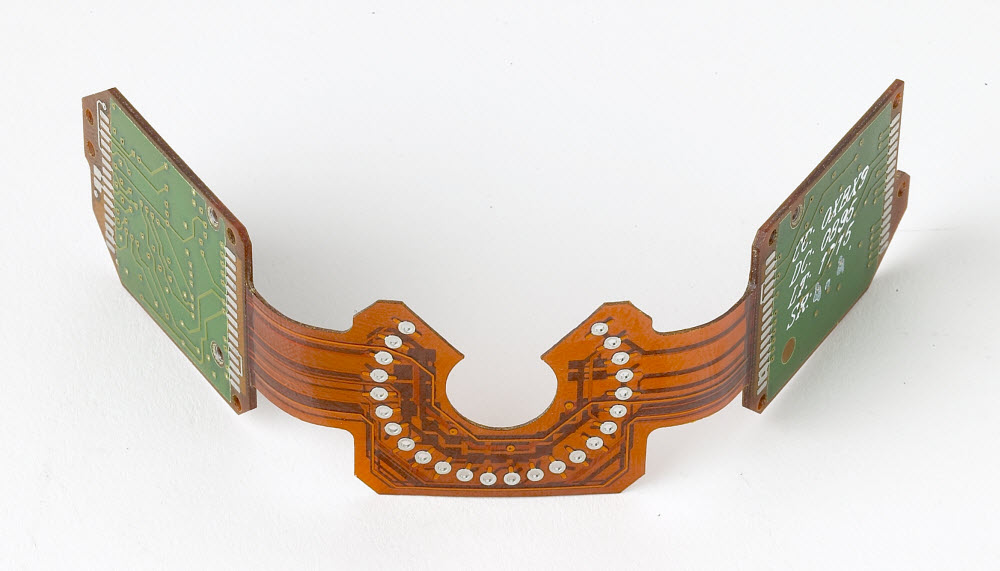

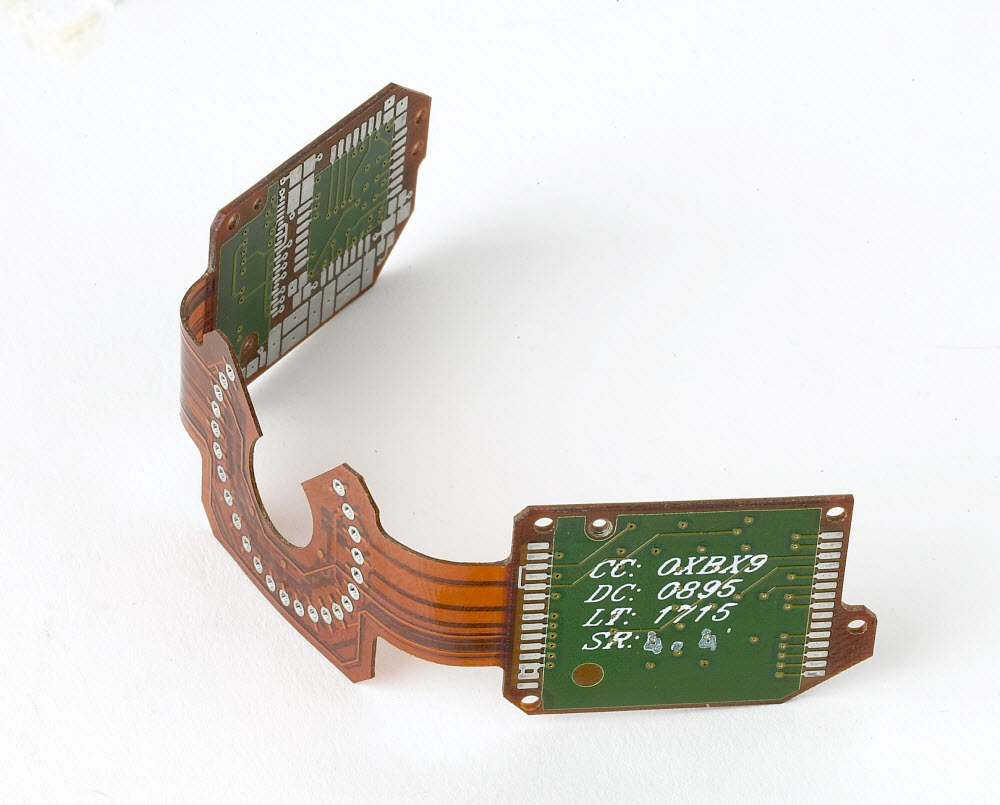

4 Layer Rigid-Flex PCB with 2 Layer Flex PCB



Rigiflex Technology, Inc. is your trusted PCB manufacturer who possesses immense expertise to take on your flexible printed circuit boards assembly challenges. With fully advanced manufacturing facility and attentive customer support throughout the design to production, we strive to deliver quality products at competitive prices on time. Over the years, we have gained recognition by delivering rigid-flex PCBs. These PCBs combine the best of rigid and flexible circuit boards. The 4 layer rigid-flex PCB with 2 layer flex PCBs is one of popular products available with us. These products are made in compliance with the industry certifications, registrations, and military performance specifications. Moreover, these rigid printed circuit boards are built to stand the test of time and also to offer unfailing performance in all working environments.

The 4 layer rigid-flex circuit boards encompass additional 2 layer flex. The materials used in the manufacturing are polyimide, polyester (PET), FR4, and Kapton. These rigid-flex circuit boards feature higher reliability and extended life expectancy. The boards are plated using Immersion gold, HASL, OSP to offer superior resistance to heat, shock and vibration and also to render corrosion and moisture resistance. This makes them suitable for aggressive environments. Keeping in mind the end use of the product, these rigid-flex circuit boards are produced after meticulous testing process to ensure optimal performance.

4 Layer Rigid-Flex PCB with 2 Layer Flex PCB
Model: Rigid-flex board-4L
Layers: 4
Material: FR4+Polyimide
Surface treatment: immersion gold
Width/space: 8/8 mil
Finish thickness: 0.2mm(flex),1.0mm
Min Hot: 0.8mm

Single sided boards are provided in thickness 0.050 mm, while double-sided boards are provided in 0.075 mm thickness. The width or space of the lines and traces is 8 mil. We offer three types of outline methods routing, punching, and V-cut. The dielectric strength of the PCB is 5KV with a surface resistance of 5×012. The Board Thickness is 0.5mm~3.0mm (0.02″~0.12″) and Copper thickness is 0.5 OZ, 1.0 OZ, 2.0 OZ, 3.0 OZ, up to 6 OZ. 4 Layer Rigid-Flex PCB with 2 Layer Flex PCB is available in Black/White Legend/Silkscreen color. The board can be customized in any of the solder mask colors including LPI S/M: Green, blue, red, black, white, flexible LPI S/M: Amber, green, black, and white.

Being a leading rigid printed circuit board manufacturer, our production process is compliant with ISO-9001, AS 9100, IPC-6012/6013, UL, ITAR, MIL-PRF-31032, MIL-PRF-50884, and MIL-PRF-55110. We have expanded PCB manufacturing capabilities to support advanced designs meeting the highest quality standards in the industry. With on-time delivery at the competitive price range, Rigiflex has been meeting the demand of aerospace, military, medical, telecommunication, electronics, and automotive industries among others.

OEM Custom Service
Board Thickness 0.5mm~3.0mm (0.02″~0.12″)
Copper thickness: 0.5 OZ, 1.0 OZ, 2.0 OZ, 3.0 OZ, up to 6 OZ
Outline: Routing, punching, V-Cut
Solder mask: White/Black/Blue/Green/Red, Taiyo PSR4000 white
Legend/Silkscreen Color: Black/White
Surface finishing: Immersion Gold, HASL, OSP
Max Panel size: 18″*24″
Packing: Vacuum/Plastic bag
Layer: 1 – 20 layers
