Superior & Trusted Flexible, Rigid-Flex & Rigid PCBs for Over 25 years
Rigid printed circuit boards are known for their compact size, which enables designing of complex circuitry. Thus, most applications, which require compact circuitry use rigid PCBs. Besides this, the rigid printed circuit boards are designed in such a way that they reduce the electronic noise produced in an application. These benefits make rigid PCBs highly preferred in most applications and industries. We, at Rigiflex, can help you design 14 layer rigid polyimide PCBs of highest industry standards.
We have the capability to help you design PCBs in various material options. The polyimide material has a better flexibility compared to the FR4 material. The polyimide printed circuit boards that we manufacture are extremely light in weight, and have a good resistance to chemicals, and heat. You can overcome all the potential PCB integration problems by using the rigid polyimide PCBs. In addition to this, the polyimide PCBs are most commonly used in military applications, owing to their excellent resistance to heat.

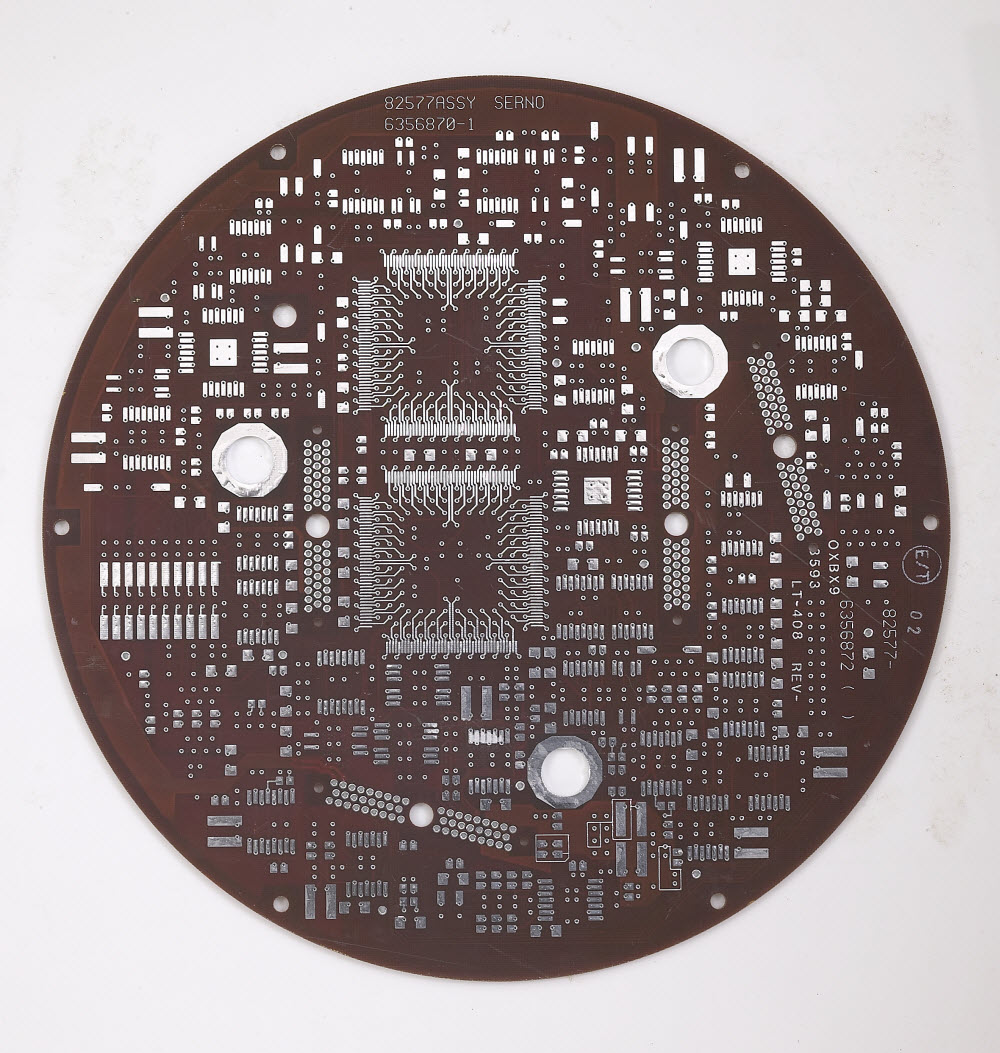

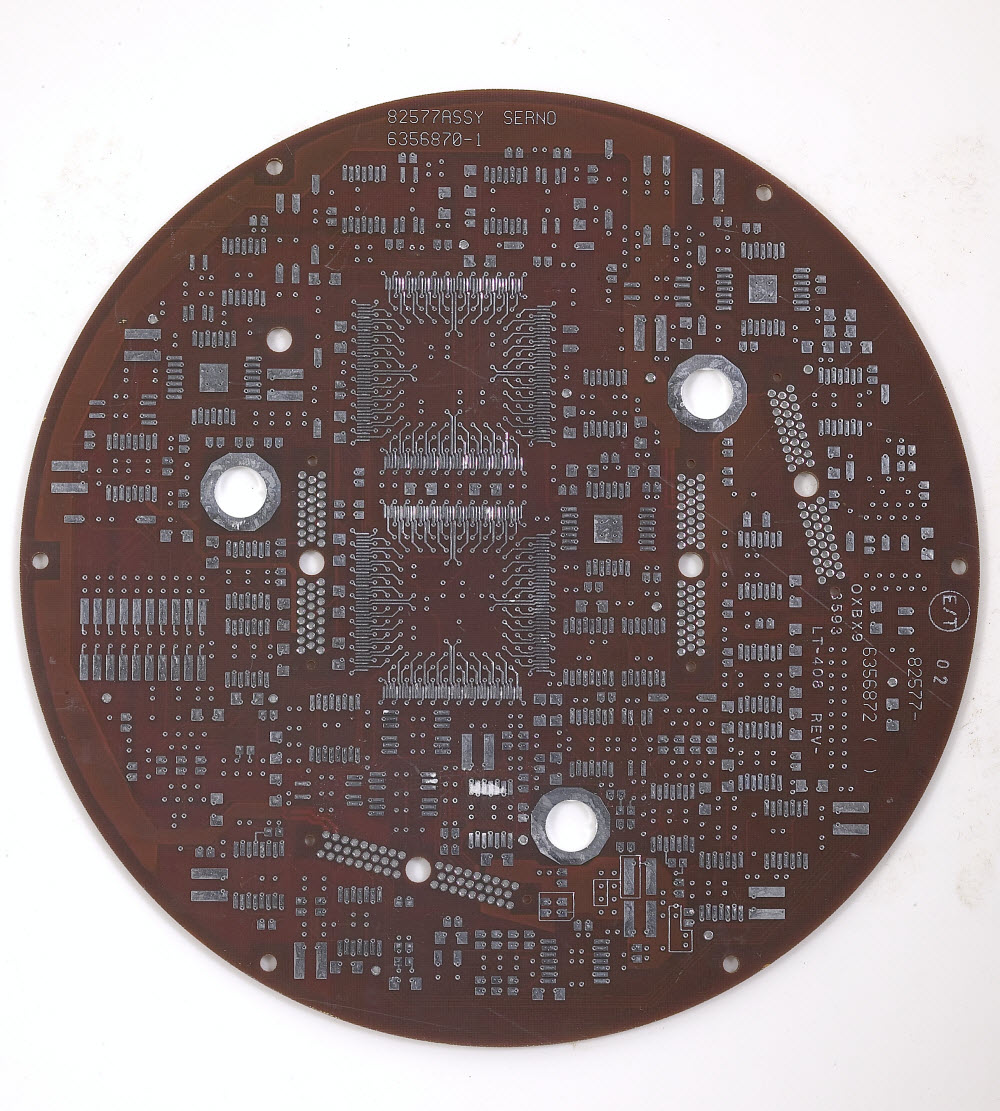

| 14 Layer Rigid Polyimide PCB | |
| Model: | 14L PCB |
| Base Material: | 14L,FR4, TG170 |
| Board Thickness: | 2.0 mm |
| Copper Thickness: | 1/H…H/1OZ |
| Min. Hole Size: | 3mil (0.076mm) |
| Min. Line Width/ Spacing: | 3/3 mil |
| Solder mask/ Silkscreen Color: | Green/White |
| Surface Finishing: | Gold |
You can select from different materials for designing a custom printed circuit board matching your application requirements. The wide variety of materials that we use for these circuit boards, include CEM3, aluminum, Getek, Nelco, Teflon, PTFE, and polyimide. The 14 layer rigid polyimide PCBs that we manufacture have board thickness of 2.0 mm, and the copper thickness ranging between 1/H and H/1OZ. We implement processes, such as laser drilling, trimming, and routing, which help us achieve line and width spacing of 0.076 mm and 0.0076 mm respectively. The hole sizes in the manufactured circuit boards are of 3 mil. We provide a vast selection of surface finish options, which include plating hard gold, flash gold, immersion gold/tin/silver, HASL, and HASL lead-free. The base materials used in these printed circuit boards are FR4, and TG170.
We have a well-equipped facility with all the advanced machinery, which helps us manufacture these 14 layer rigid polyimide PCBs that match the exact specifications of the clients. For more details get in touch with our professionals
| Rigid PCB Capability | |||
| No. | Item | Technical data | |
| 1 | Layer Count | 1-30Layers | |
| 2 | HDI Type | 1+N+1, 2+N+2 | |
| 3 | Material | CEM3, FR-4, Halogen Free, Aluminum-based, Teflon, Rogers, Getek, Nelco, PTFE, Polyimide etc | |
| 4 | Board thickness | 0.2~5.0mm | |
| 5 | Board Size | Max. | 18”x24” |
| Min. | 30x50mm | ||
| 6 | Copper Thickness | Outer layer | 1oz~6oz |
| Inner layer | Hoz~5oz | ||
| 7 | Min. Line Width/Space | 4/4mil(0.1/0.1mm) | |
| 8 | Finished Hole size | Mechanical | 0.20~6.30mm |
| Laser | 5mil, 6mil | ||
| 9 | Blind/buried via(Mechanical) | 0.2mm (min) | |
| 10 | Aspect Ratio | 10:1 | |
| 11 | Hole Dia.Tolerance | PTH | ±0.075mm(3mil) |
| NPTH | ±0.05mm (2mil) | ||
| 12 | Hole Position Tolerance | ±0.05mm (2mil) | |
| 13 | Bow & Twist | ≤0.75% | |
| 14 | Peel strength | 1.4N/mm | |
| 15 | Thermal stress | 288℃ & 20 Sec | |
| 16 | Test Voltage | 50-300V | |
| 17 | Soldermask color | Green, Red, Blue, Black, White | |
| 18 | Silkscreen color | White, Black, Yellow | |
| 19 | Min. S/M Pitch | 4mil(0.1mm) | |
| 20 | Min. Solder Mask Clearance | 0.05mm | |
| 21 | Impedance Control Tolerance | +/-10% | |
| 22 | Outline Tolerance | ±0.10mm (4mil) | |
| 23 | Surface Finish | HASL, Lead free HASL, Immersion Gold/Tin/Silver, OSP, Flash Gold, Gold fingers, Plating Hard Gold, Carbon lnk, Peelable mask | |
